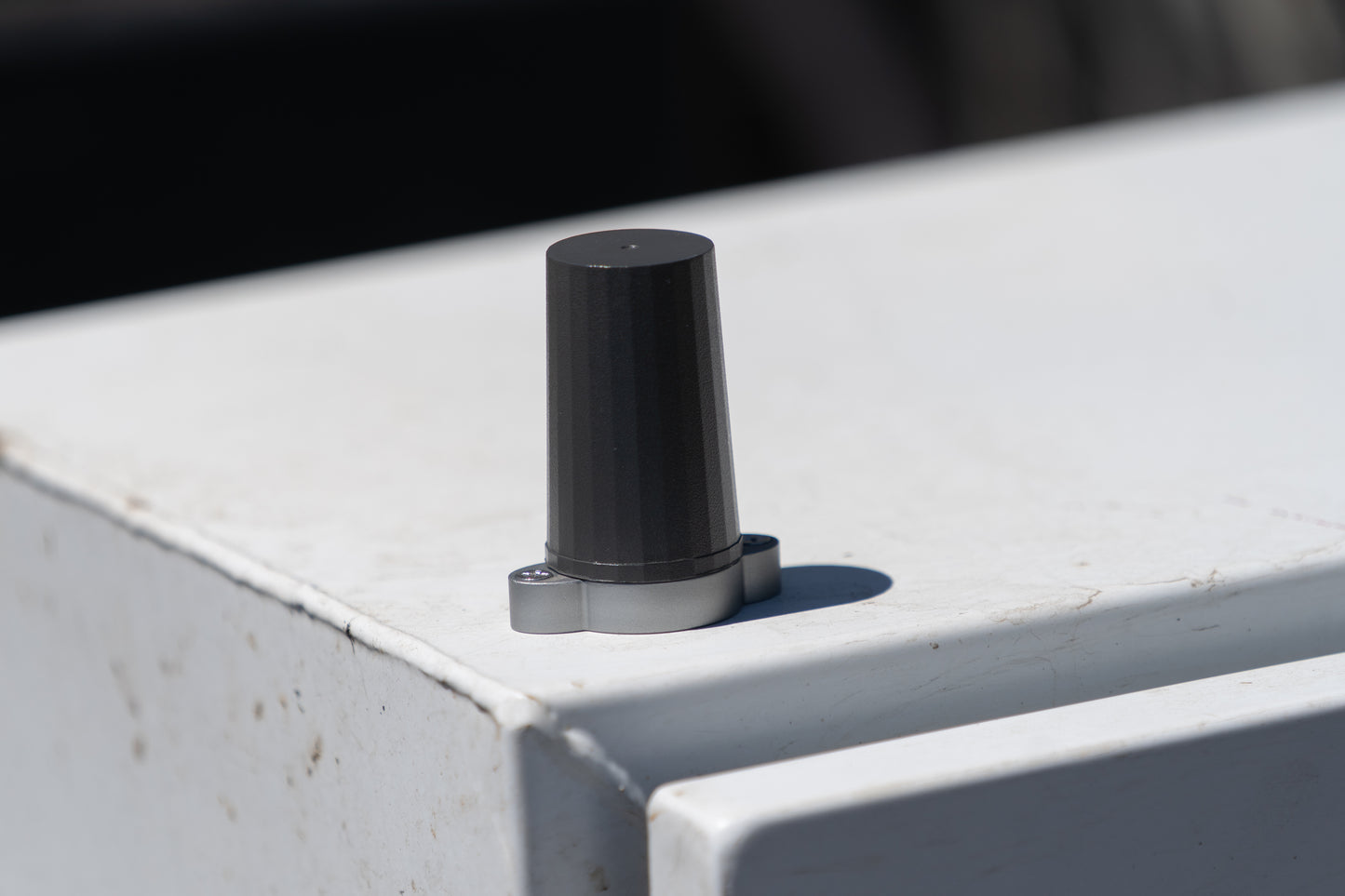

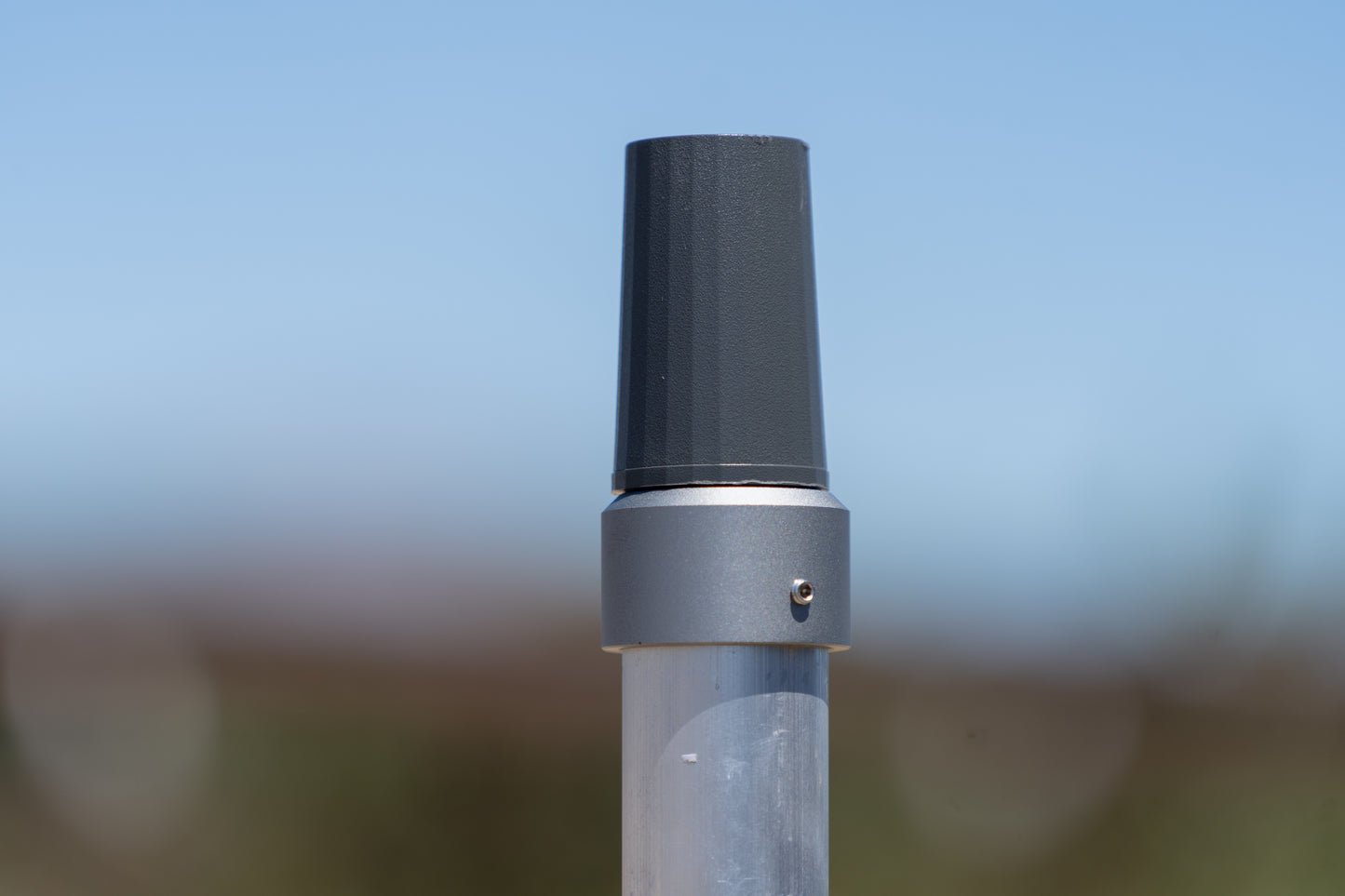

Machined 6061 aluminum mounts for the Tallyman HC610 Active Iridium Helical Antenna (33-HC610) allow for mounting on either the top of a pole or a flat surface, depending on the selected model.

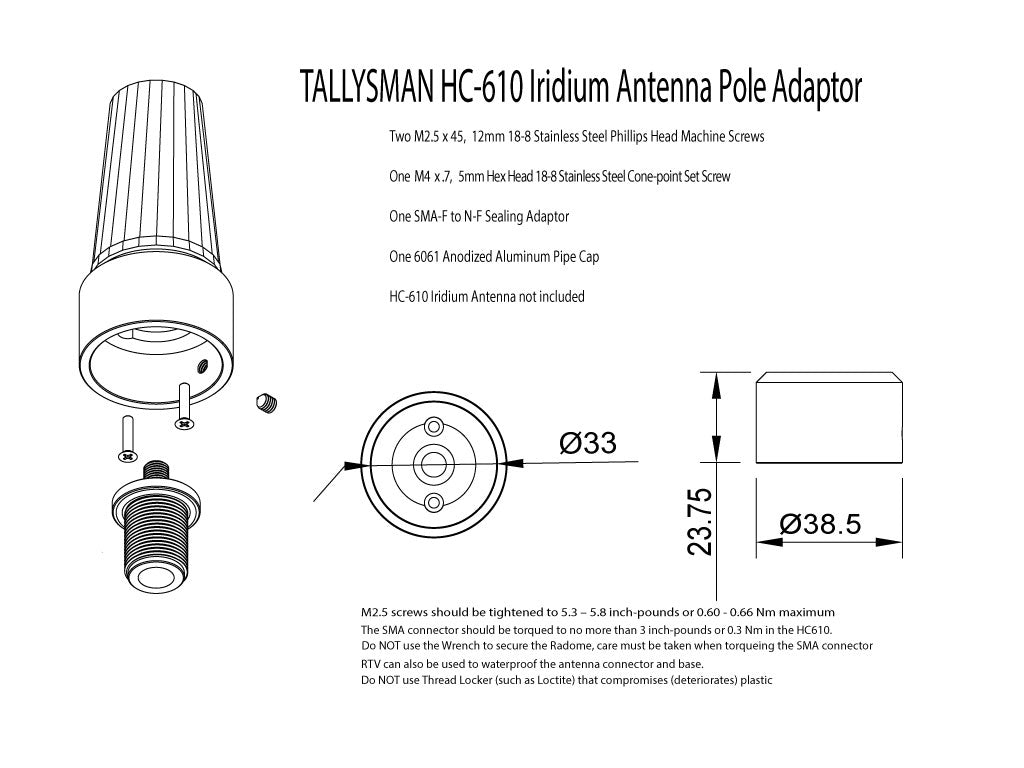

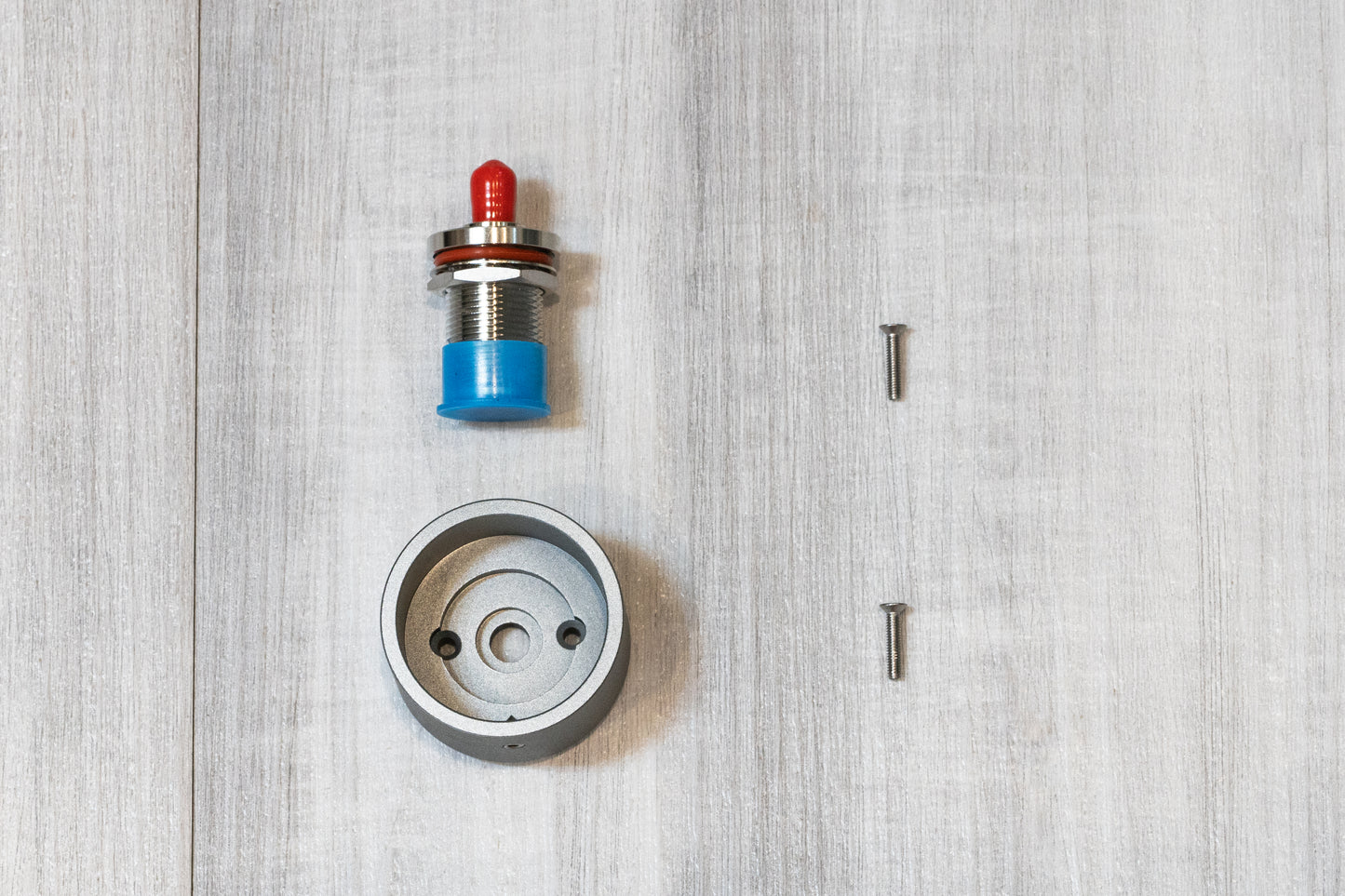

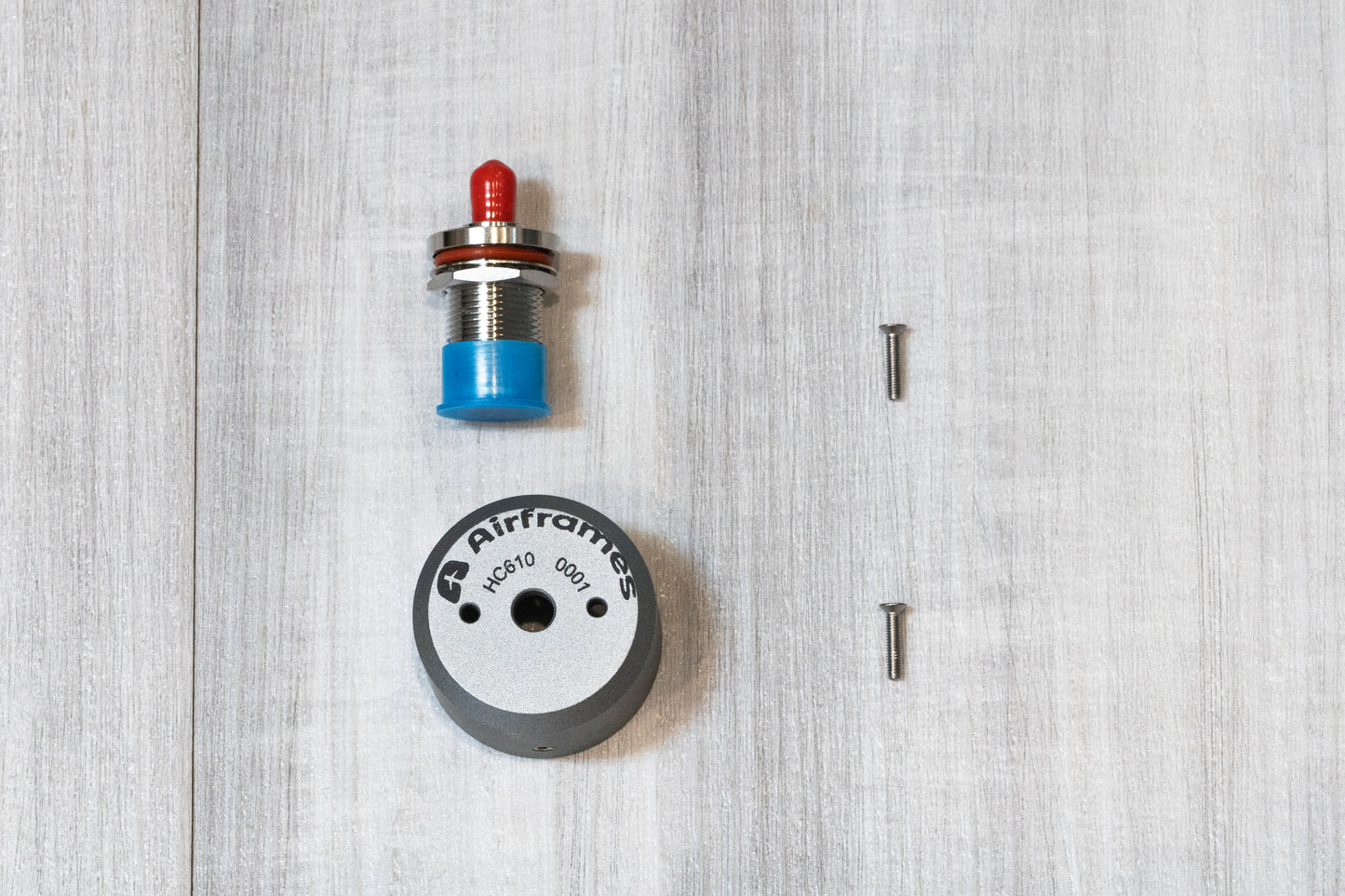

Both models utilize the Tallysman o-ring for a watertight seal and include two M2.5x12mm 18-8 stainless steel screws. The pole mount model also includes one M4x5mm 18-8 cone-point set screw for a secure attachment to 1 1/4" (32mm) pole ends.

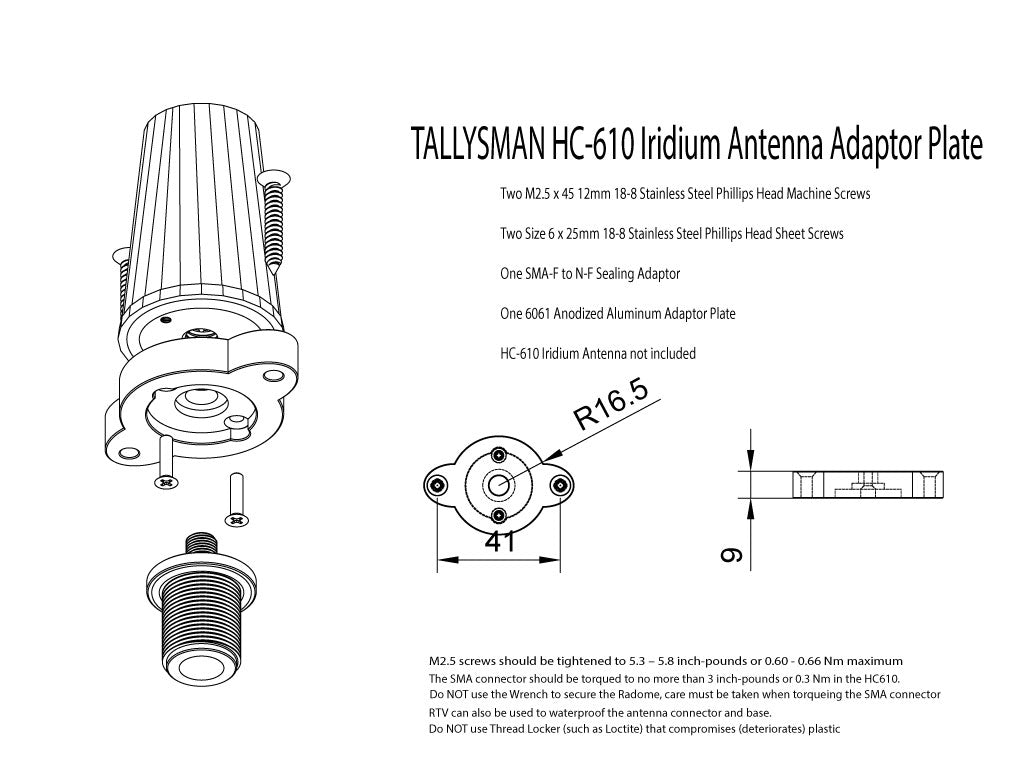

The flat mount model comes with two #6x25mm 18-8 Phillips head sheet metal screws. Both models include an SMA-F to N-F adapter, with the flat mount using this adapter to seal the coax passthrough hole. It is recommended to use RTV for sealing the sheet metal screw holes and the mount base.
Both models allow for most SMA-f long adaptors.
Anodized and made in the USA.
** TALLYSMAN HC610 Active Iridium Helical Antenna (33-HC610-x) is not included with this purchase. Mounting bracket only!
