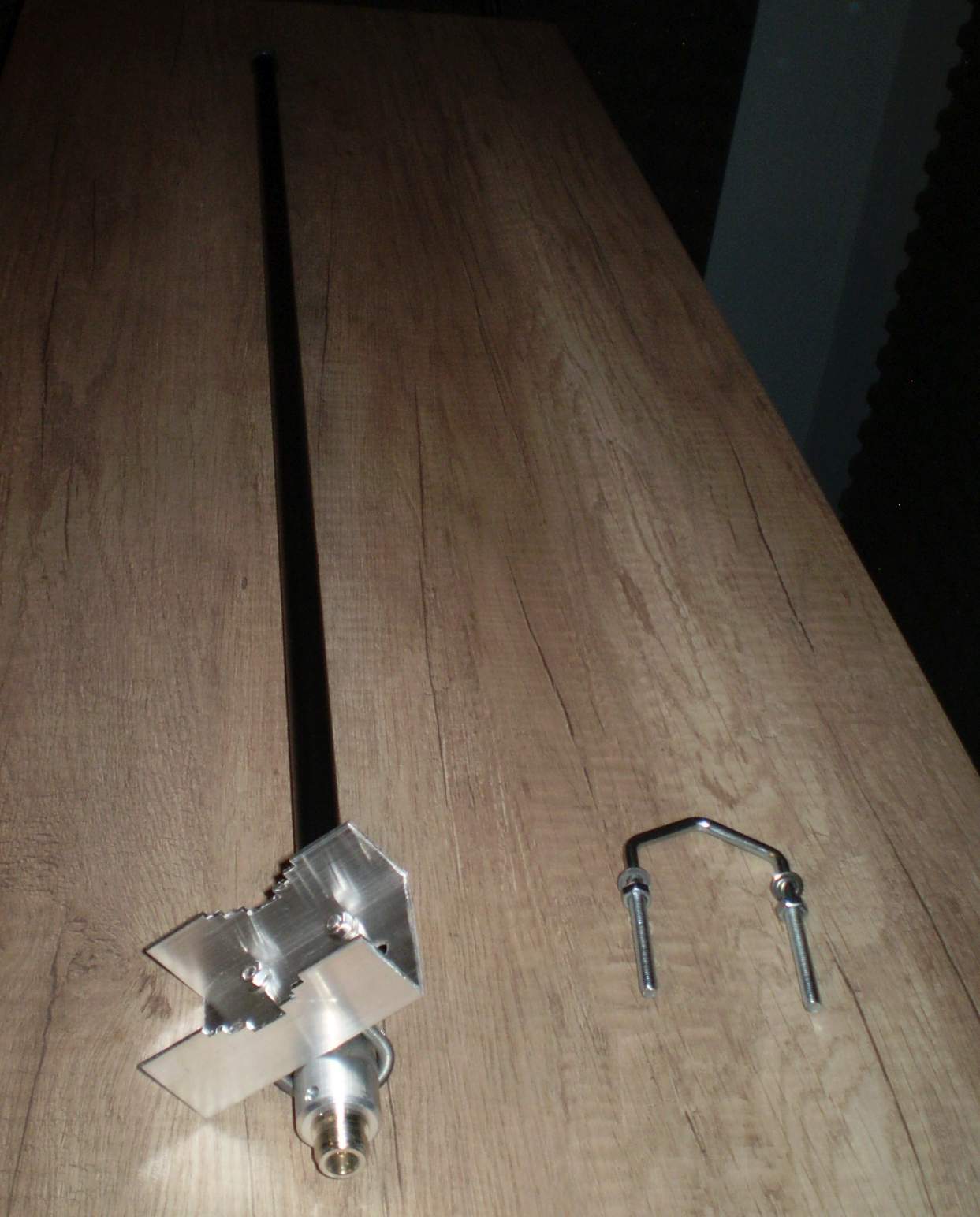

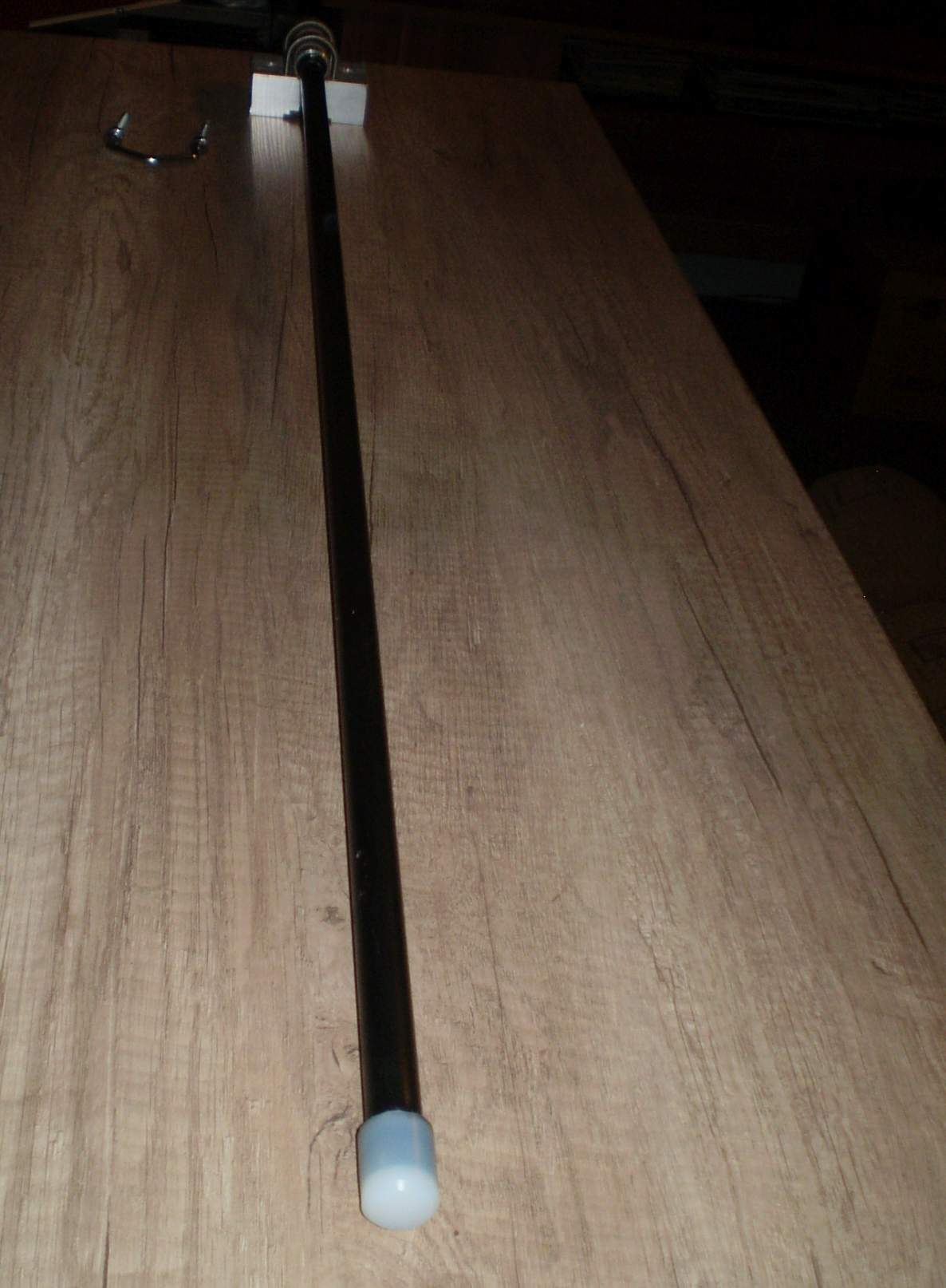

Vinnant ADS-B 1090mhz Outdoor Antenna

Vinnant ADS-B 1090mhz Outdoor Antenna

Regular price $69.99 USD
Regular price Sale price $69.99 USD
Sale Sold out

An affordable high-performance collinear omnidirectional antenna for outdoor reception of ADS-B aviation (1090 mHz) signals from overhead/nearby aircraft.

An outdoor antenna will always perform better than an indoor antenna, because outdoor antennas have:

  • better line-of-sight
  • better reception without filtration from building materials
  • less localized interference

This outdoor antenna will not break the bank considering it is high quality and has high gain performance for ADS-B 1090mhz reception.

Specifications

  • Manufacturer Vinnant
  • Model CC1090/8-P
  • Length 102cm
  • Type N female connector
  • 8dBd / 10 dBi gain on receive

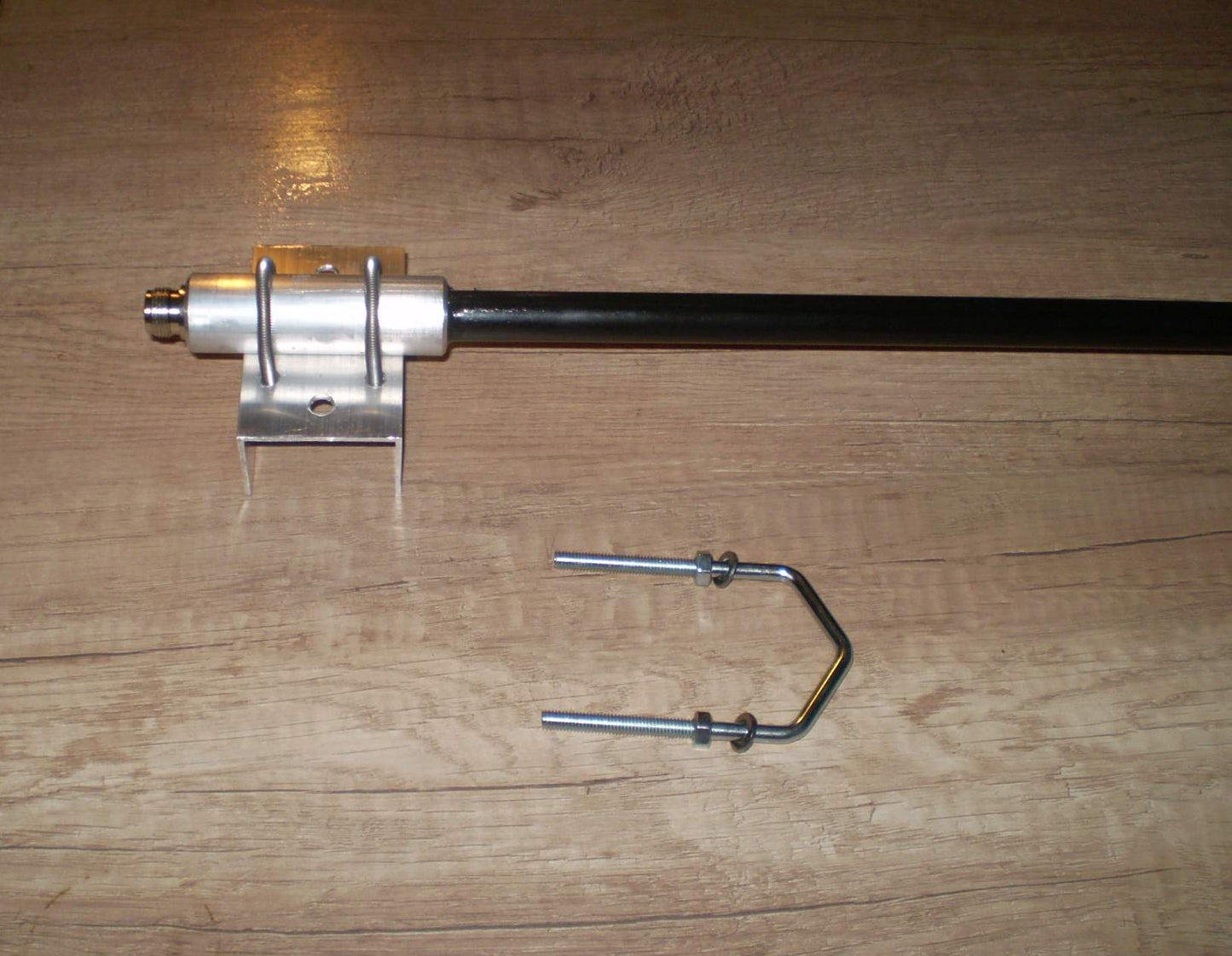

  • 20 to 50mm pole mounting diameter
  • Type Z5 holder (~30cm length)
  • Tuning 1090mhz / Non-tunable
  • Bandwidth 5mhz
  • Enclosure black fiberglass radome (UV stable)
  • DC ground for static protection
  • SWR 1.5:1 or better (1.2 typical)
  • Impedance 50 ohm
  • Temperature range -30C to +70C
  • Wind Rate up to 200km/h
