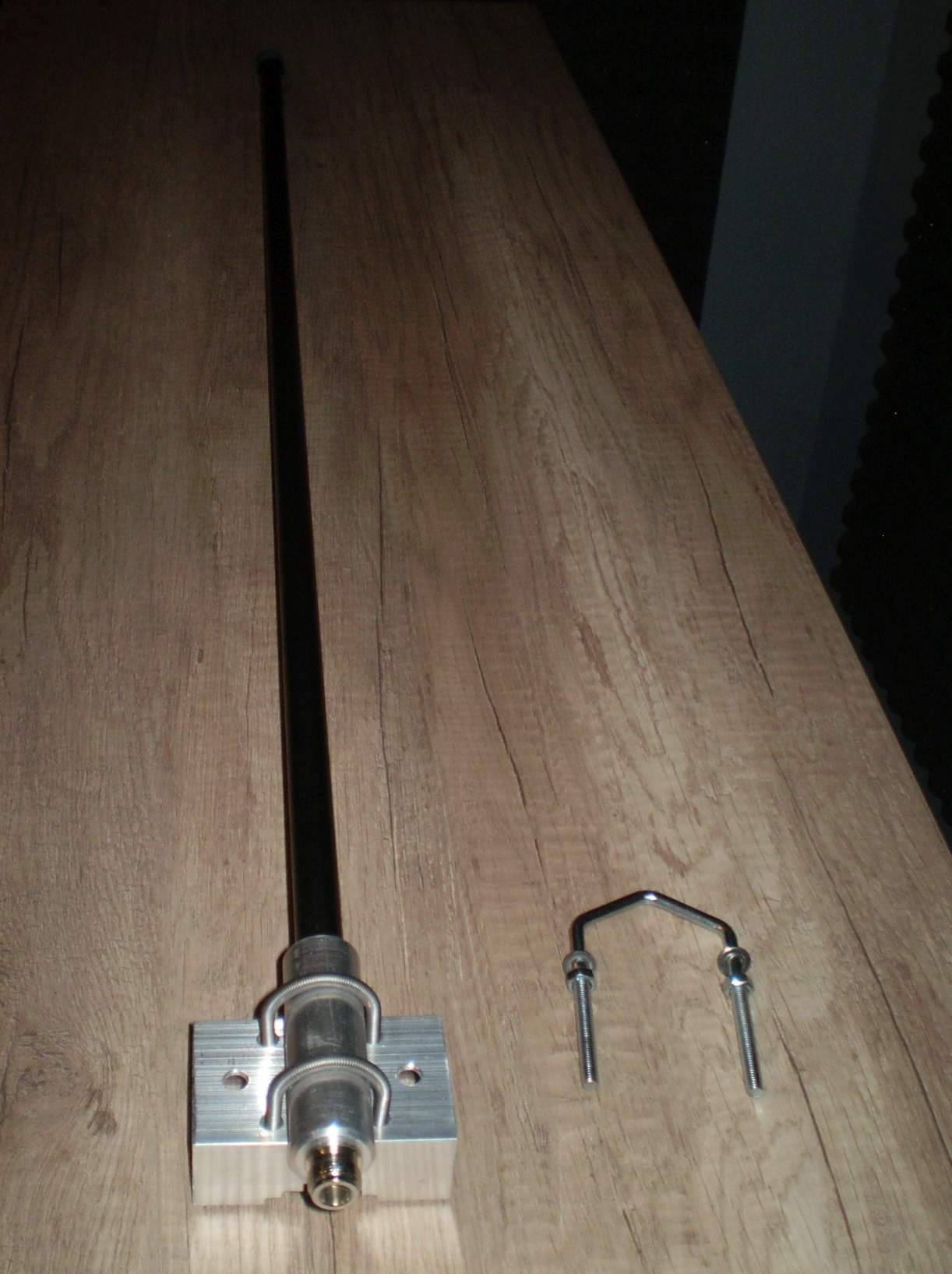

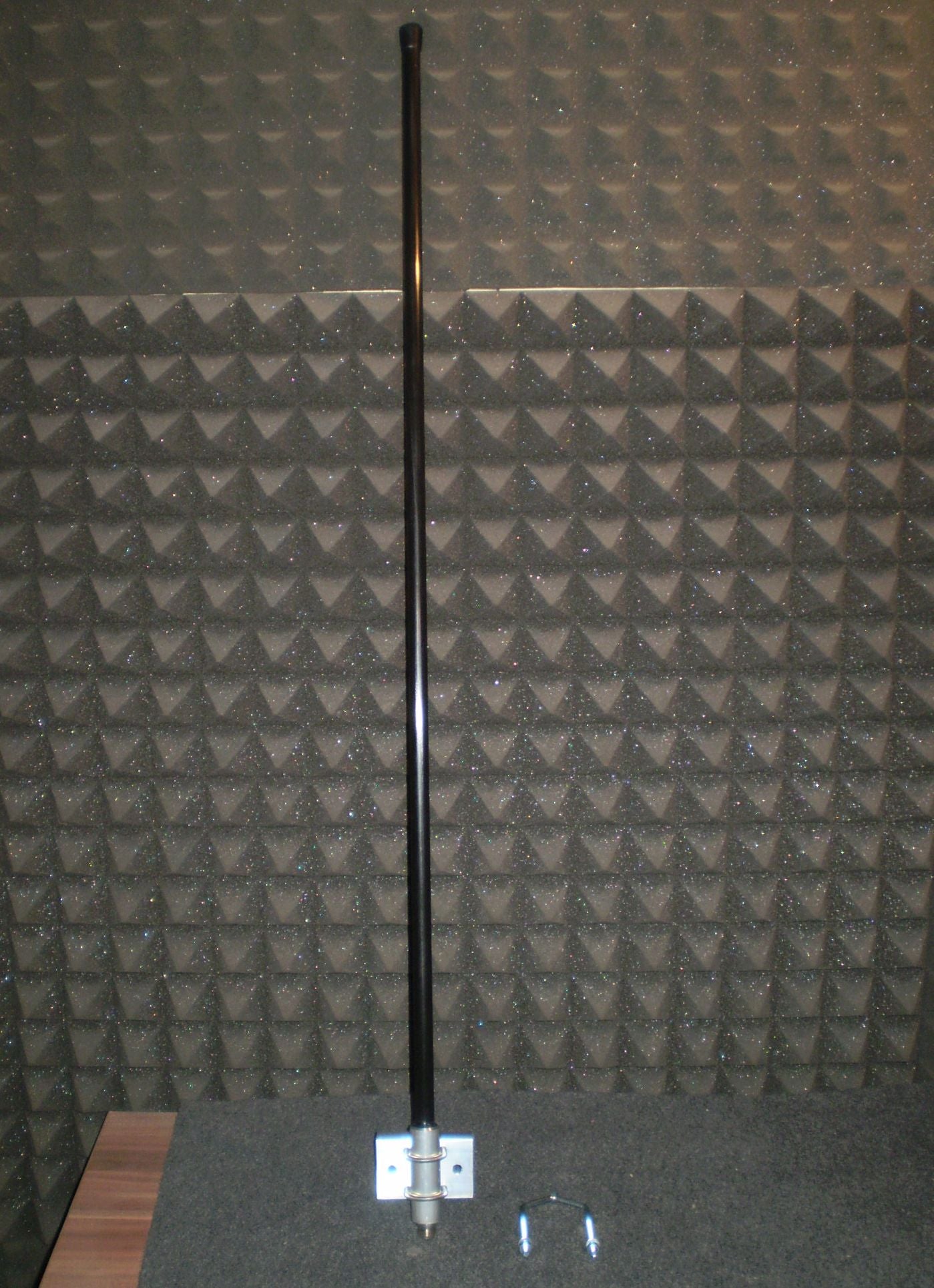

Vinnant LoRa/Meshtastic 868mhz Outdoor Antenna

An affordable high-performance collinear omnidirectional antenna for outdoor reception of LoRa/Meshtastic (868 mHz) for Europe and any other region using 868mhz,

An outdoor antenna will always perform better than an indoor antenna, because outdoor antennas have:

• better line-of-sight
• better reception without filtration from building materials
• less localized interference

This outdoor antenna will not break the bank considering it is high quality and has high gain performance for ADS-B 1090mhz reception.

Specifications

• Manufacturer Vinnant
• Model CC868/6-P
• Length 103cm

• Type N female connector
• Holder Type Z5
• 6dBd / 8.14 dBi gain on receive
• 20 to 50mm pole mounting diameter
• Tuning 868mhz / Non-tunable
• Bandwidth 5mhz
• Enclosure black fiberglass radome (UV stable)
• DC ground for static protection
• SWR 1.5:1 or better (1.3 typical)
• Impedance 50 ohm
• Temperature range -30C to +70C
• Wind Rate up to 200km/h
